If you’re building, renovating, or just tired of the room-to-room temperature lottery, ducted air conditioning is probably on your radar. It’s the system that covers your whole home from a single outdoor unit, controlled through ceiling vents with no wall-mounted units cluttering every room. This guide covers what ducted AC is, how it works in a Perth home, what it costs, and how to figure out if it’s the right move for your situation.
Key Takeaways
- Ducted reverse cycle systems cool and heat your whole home from one outdoor unit via ceiling vents
- Heating and cooling are one of the largest draws on household electricity in Australia. Correct system sizing and zoning make a measurable difference to your running costs
- Zoning lets you run only the areas you’re using, which lowers running costs considerably versus running a whole-home system flat out
- Perth homes with 3 or more bedrooms are typically where ducted systems start to make more financial sense than multiple split systems
- All ducted installations must be carried out by a licensed refrigeration mechanic under Australian regulations

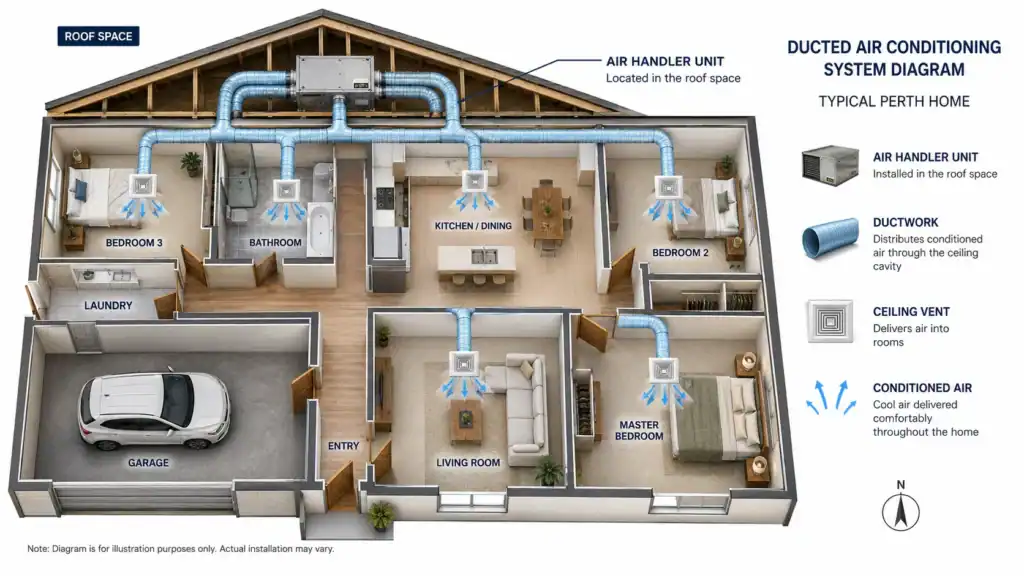

Ducted air conditioning is a whole-home climate system. A single outdoor unit connects to an indoor air handler, usually installed in the roof space, which pushes conditioned air through a network of insulated ducts to ceiling vents in every room. One controller, either a wall panel or a smart app like Advantage Air MyPlace, manages the entire system from a single point.
The key distinction from a split system is coverage. A split system does one room at a time. Ducted does the whole home. That’s why the upfront cost is higher: you’re buying whole-home comfort rather than room-by-room coverage. For larger Perth homes, the economics usually flip once you factor in running multiple split systems simultaneously.
All ducted systems installed in Australia today are reverse cycle, meaning the same unit provides both cooling in summer and heating in winter through a single system.
How Does Ducted Air Conditioning Work?

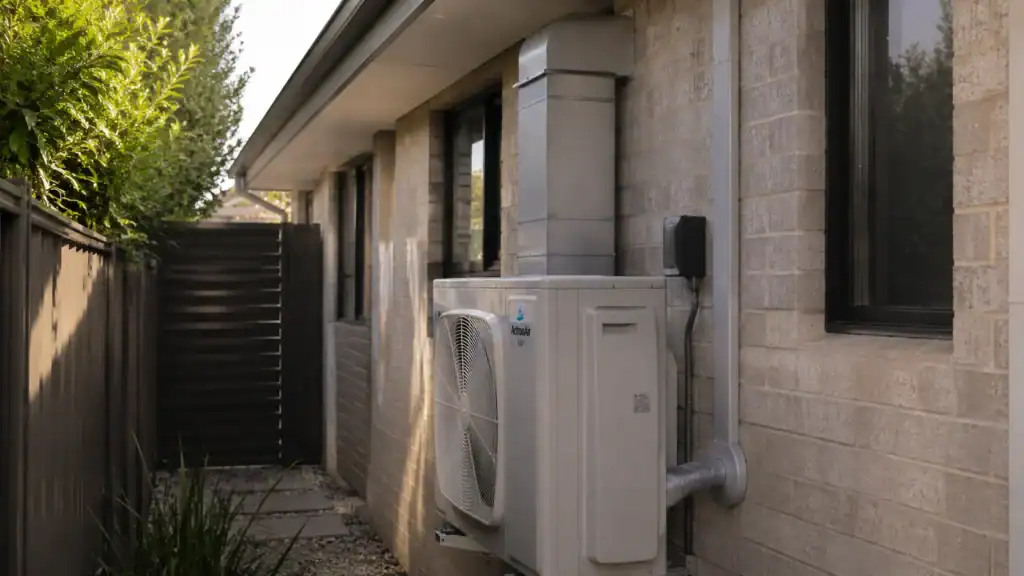

The outdoor unit (the compressor) extracts thermal energy from the outside air and transfers it either into or out of your home, depending on whether you want cooling or heating. That energy is carried by the refrigerant to the indoor air handler in your roof space. The air handler then blows conditioned air through insulated ductwork to ceiling vents throughout the house.
Zoning is where the real control comes in. Motorised dampers inside the ducts open and close to direct airflow only to the areas you want. A 4×2 Perth home might run with five or six zones: main living and kitchen as one zone, three bedrooms individually, and the master suite as another. You can cool the living areas during the day and switch to bedrooms only at night, without running the system at full load across the whole house.
Under Australian Refrigeration Council (ARCTick) regulations, all work involving refrigerants must be carried out by a licensed refrigeration mechanic. At WestOz Trades, our team is qualified air conditioning and refrigeration mechanics, not generalist electricians or handymen, and we handle all electrical work in-house with our own licensed electricians.
Ducted vs Split System: Which Is Right for Your Perth Home?
Both systems are reverse cycle, both work well in Perth’s climate, and both are installed by WestOz Trades. The right choice comes down to your home size, budget, and how you use your space.
| Factor | Ducted | Split System |
| Best for | 3+ bedroom homes, new builds, renovations | 1-2 bedroom homes, units, single rooms |
| Upfront cost | Higher (whole-home installation) | Lower per unit |
| Running cost | Lower when zoned correctly | Higher if running multiple units at once |
| Aesthetics | Ceiling vents only – no wall units visible | Indoor unit visible on the wall in each room |
| Coverage | Whole home, controlled by zone | Room by room |
| Installation | Roof space access required, 1-2 days | One unit per room, faster per unit |
If you’re already considering adding three or more split systems to a large home, ducted often becomes the more cost-effective option, both to install and to run. For a 1-2 bedroom unit or a single room addition, a split system is the better fit. Not sure which is right for your property? Our team can advise based on your floor plan and how you use each space.
We cover the comparison in more detail in our dedicated post on split system vs ducted air conditioning.
How Many Zones Do You Need?
Zones are the independently controlled areas of your home. Running only the zones you need, rather than the whole house is one of the main reasons a well-set-up ducted system can be cheaper to run than multiple split systems working simultaneously.
Typical zone configurations for Perth homes:
- 4-5 zones: 3×2 home with main living area, kitchen, and separate bedrooms
- 5-7 zones: 4×2 home with activity room, master suite, and multiple living areas
- 7-9 zones: larger homes, two-storey properties, or homes with theatre/study rooms
- 2-4 zones: smaller homes, townhouses, or investment properties
One important planning consideration: every ducted system requires a minimum number of zones to remain open at any time to prevent the system from working against itself and damaging the compressor. Your installer sets this minimum zone requirement during commissioning. WestOz Trades includes this as standard in every ducted install.
What Does Ducted Air Conditioning Cost in Perth?
Ducted installation cost in Perth varies based on three main factors: the size of your home, the number of zones, and the brand and efficiency rating of the system you choose. A full supply-and-install for a 4×2 home with six zones from a premium brand will cost considerably more than a 3×2 with four zones and a mid-range system.
What you should know upfront: the installation must be carried out by a licensed air conditioning and refrigeration mechanic. Quotes from unlicensed or underqualified operators may look cheaper but can void your manufacturer’s warranty and create compliance issues down the track. At WestOz Trades, every ducted install is carried out by our own qualified team, with licensed electricians handling the electrical connections as part of the same job; no subcontracting required.
For a detailed breakdown of costs by home size and zone count, get in touch with our team for a no-obligation quote.
Which Ducted AC Brands Do We Install?
WestOz Trades is brand-agnostic. We supply and install systems from over 30 manufacturers, so you’re not locked into whoever the installer has a commercial arrangement with. Our most commonly installed ducted brands include Daikin, Mitsubishi Electric, Samsung, Fujitsu, LG, and Panasonic.
The right brand for your home depends on Energy Star ratings, noise output, warranty terms, and your specific comfort goals. Our team advises based on your home and budget – not on margin. View the full list of brands we work with.
Maintaining Your Ducted System
Ducted systems are larger and more complex than split systems, and they need annual servicing to run efficiently and safely. According to the Australian Government energy efficiency guidance, heating and cooling are among the largest contributors to household electricity bills; a poorly maintained or oversized system compounds this further.
A full ducted service covers the indoor coil, return air filter, zone dampers, outdoor unit, and drain line. Perth’s winter months are the best time to book, technician availability is better, your system is in its off-season, and you’ll be ready before the summer rush. See our post on what an air conditioning service includes for the full breakdown of what a ducted service involves.
WestOz Trades’ AirCare membership program handles the scheduling for you: annual service reminders, priority response in summer, and 10% off all service work. Membership is free.
Ready to Explore Ducted AC for Your Perth Home?
WestOz Trades are licensed air conditioning and refrigeration mechanics, Perth-owned and covering the full metro area. We handle the full ducted job from design to commissioning, with licensed electricians in-house. No subcontracting, no surprises.
Get a no-obligation ducted AC quote or learn more about our ducted air conditioning installation service.
Frequently Asked Questions
All ducted air conditioning systems in Perth are reverse cycle. ‘Reverse cycle’ refers to the technology, the ability to both heat and cool. ‘Ducted’ refers to how the air is delivered, through insulated ductwork and ceiling vents. You can have a reverse cycle split system or a reverse cycle ducted system, they use the same underlying technology.
Yes, and it’s more common than people assume. Most Perth homes with accessible roof cavities can have ducted systems installed without major structural work. WestOz Trades assesses roof space access as part of every quoting process and advises on any constraints upfront, before you commit to anything.
A standard ducted installation in a Perth home typically takes one to two days, depending on home size, zone count, and roof access conditions. You’ll be without cooling or heating for that period, which is why many Perth homeowners book ducted installs during the cooler months.
It depends entirely on usage. A well-zoned ducted system running only the rooms you’re using will typically cost less to run than four or five split systems running simultaneously across a large home. Running a large ducted system on a single zone for one room is the reverse, that’s inefficient and expensive. Correct sizing and zone setup at installation is what makes the difference.
Yes. Annual servicing is the recommended cadence for most Perth homes. A ducted service covers the indoor coil, return filter, zone dampers, outdoor unit, and condensate drain. Skipping services leads to reduced efficiency, higher running costs, and shorter system life. WestOz Trades’ AirCare program handles the reminders and scheduling for you at no cost to join.
